N Series - Surface Mount Chip NTC Thermistors

The N thermistors, the highly reliable thermistors, are characterized by their fast response time, which were made by the way of ceramic process. Our thermistors are the most excellent products of today's chip thermistors manufacturing.

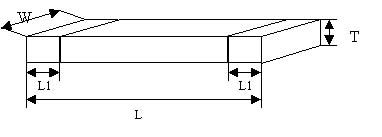

    Dim.

Type

L

(+0.2)

W

(+0.2)

L1

A

(+0.3)

H

(+0.2)

1206

3.2

1.6

2.0

0.6

1.1

0805

2.0

1.25

1.4

0.3

0.3

0603

1.6

0.8

1.0

0.3

0.3

Features

項目符號 Surface mount capability
項目符號 Operating Range
項目符號 Uniformly sized for pick and place assembly
項目符號 Ultra small size and low capacitance
項目符號 Lead Free
項目符號 Top Quality
項目符號 High Stability
項目符號 Fast Thermal Response
項目符號 Low Cost and Long Life
項目符號 RoHS compliance

Specifications

項目符號 Operating temperature range: -40oC to 125oC
項目符號 Tolerance: + 1%,  +3 or  +5%
項目符號 Dissipation constant: 3.5 mW/oC in still air
項目符號 Thermal time constant: 5 - 8 seconds in air.
項目符號 Maximum power rating: 350 - 450 mW (at 25oC)

Options

項目符號

Resistance at 25oC

010K: 10K ohms 047K: 47K ohms
100K: 100K ohms 　
項目符號 Tolerance @25oC
01: +1% 03: +3%
05: +5%
項目符號

B value 25oC / 85oC

3435K, 4100K, 4050K

　

Products of N Series

Part No. Resistance at 25oC Tolerance B Value (25oC / 85oC) Dimension
N010K0134352 10K ohms +1% 3435 1206
N010K0134356 10K ohms +1% 3435 0603
N010K0134358 10K ohms +1% 3435 0805

　
