D Series - Diode Type NTC Thermistors

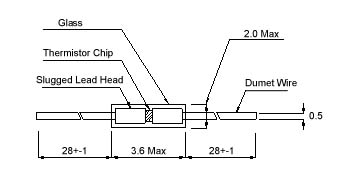

The D series thermistor is a thermal sensor in a DO35 package. It is highly reliable and offers a wide operating range of -50oC to 250oC. They can be employed for home electric appliances and high temperature applications.

Features

項目符號 High Accuracy
項目符號 Operating Range
項目符號 Excellent thermal cycle endurance
項目符號 Glass sealed body for high reliability
項目符號 Top Quality
項目符號 High Stability
項目符號 Fast Thermal Response
項目符號 Low Cost and Long Life

Specifications

項目符號 Operating temperature range: -50oC to 250oC
項目符號 Tolerance: + 1%,  +3 or  +5%
項目符號 Dissipation constant: 2.4mW/oC
項目符號 Thermal time constant: Max. 15 seconds in still air.
項目符號 Maximum power ruting: 250 mW (at 25oC)

Options

項目符號

Resistance at 25oC

010K: 10K ohms

015K: 15K ohms

030K: 30K ohms

047K: 47K ohms

050K: 50K ohms

100K: 100K ohms

200K: 200K ohms

　
項目符號 Tolerance @25oC
01: +1% 03: +3%
05: +5%
項目符號

B value 25oC / 85oC

3977K

3990K

4080K

 4391K

　

Products of D Series

Part No. Resistance at 25oC Tolerance B Value (25oC / 85oC)
D010K013977 10K ohms +1% 3977
D100K013977 100K ohms +1% 3977
D091K013990 91K ohms +1% 3990
D200K053950 200K ohms +5% 3950

　
